Description
Features
-Single hand operation, operating experience required can test any operating experience which is reachable in any site
-Wide valid testing range equivalent to Brinell hardness 25-150HBW, used to test the hardness of all kinds of aluminum from very soft aluminum to very hard alloys

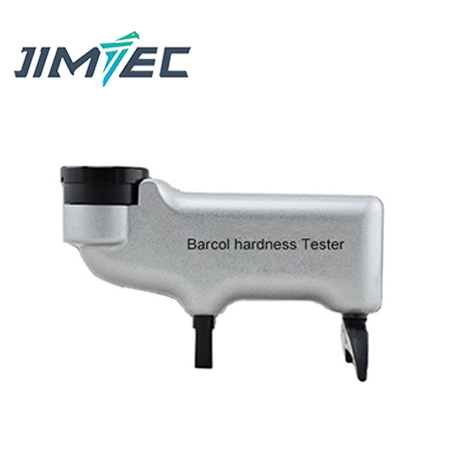

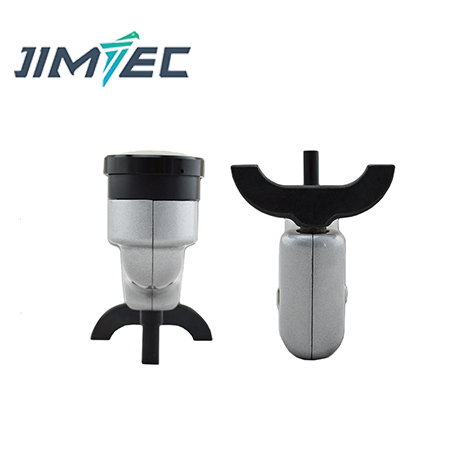

-Barcol Impressor has a wide range of application. Model 934-1 can be used to test aluminum and aluminum alloys, copper and copper alloys, glass fiber reinforced plastics,rigid plastics, etc. The improved type can be used to test lead, tin and other soft metal, and flexible plastics, rubber,felt, leather, and so on
-With 100 scales, our Barcol Impressor is of higher sensitivity than commonly used Webster hardness testers in aluminum alloy industry
-By use of the conversion table, the test results can be easily converted to HB, HR, HV and HW
Technical Specification
1.Testing Range :0~100HBa (25~150HBW)
2.Resolution 0.5HBa
3.Indenter 26° pan head cone, head face diameter 0.176mm
4.Error :≤±1~2HBa
5.Indication Error：Hardness range 45~55HBa ±2HBa Hardness range 84~88HBa ±1HBa
6.Repeatability Error :Hardness range 45~55HBa ±2HBa Hardness range 84~88HBa ±1HBa
7.Weight 0.5kg
