Description
Introduction

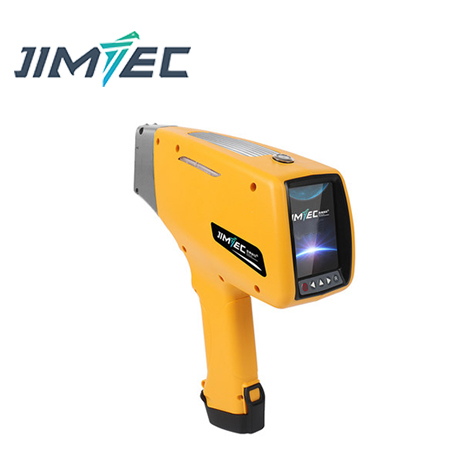

It is the state of the art in nondestructive metals elemental analysis and detection.
Can designed for on-site composition identification, featuring small, light, precise,rapid, beautiful, safe, convenient, waterproof
and long-standby time. Equipped with digital multi-channel technology, it greatly improves the detection limit and stability of the
instrument, expanding the application fields.
This product has passed strict testing and inspection, and all index are accorded with the related technological requirements.
Technical specification
Dimensions:245*250*90mm, 1.5 kg
Probe:High-sensitivity Si-pin/SDD probe
Target Material:Ag、W、Ta
X-Ray tube power:50 KV, 6~38uA
Light filter:6 automatically swapping filters
Power source:2X Li batteries, 110/220V charge
Operating ambient temp/humidity:Temp: -20° C to 50° C
Humidity:0-90%
Cooling system:Peltier cooling, maintains probe at -35° C
Spectrum beam:2 spectrum beam options, automated beam selection
Display scheme:Industry standard
Onboard data storage:2GSD, store up to 400,000 data entries
Data formatting:ppm and % terms, full spectrum or peak intensity only
Data transmission:USB2.0, Bluetooth, GPS, export to Excel
External ports:USB2.0, Bluetooth, accelerator, clock chip, SD card, GP10 trigger
CPU:532MHZ, Freescal MX-31 processor
OS:Windows CE 6.0
Build grade:350 built-in types, user can specify
