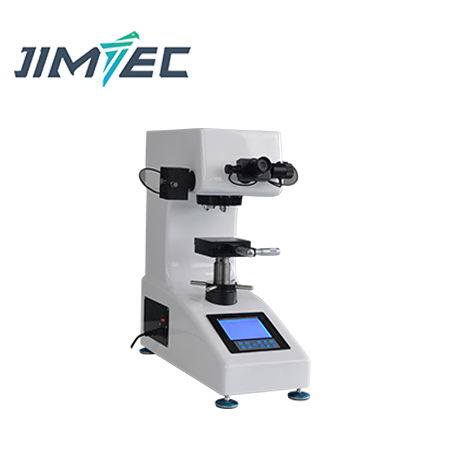

HVS-1000B Vickers Hardness Tester

Description

Product introduction

This product adopts a unique and precise design on the mechanics, optics and light source to make the indentation imaging clearer and the measurement more accurate. It adopts a brand-new LCD display, and the operation interface adopts a menu structure. The hardness scale HV or HK can be selected on the operation panel, and the tested hardness value is automatically calculated and displayed. Various hardness scales can be converted mutually. This machine is equipped with a 10x digital display measuring microscope and a 40x objective lens that can participate in the measurement, making the measurement range larger and the application range wider. It also uses a large screen, which is more intuitive and clear in operation. The test method, Test force, indentation length, hardness value, test force retention time, measurement times, date, time, hardness conversion value can be displayed on the screen. It has functions as scale conversion, storage, printing and RS232 interface. The manual conversion of the indenter and the objective lens is accurate and more efficient. It has a threaded interface for connecting digital cameras and CCD cameras, which is convenient for selecting optional computers and hardness analysis and measurement software.

1.The machine has the functions of data storage, query and average value calculation.

2.The machine adopts three-point positioning, which is more accurate and repeatable.

3.The supporting shrapnel of the machine is made of imported special customized material, which has high toughness, high fatigue resistance and is not easy to deform

4.The operation interface of the machine adopts the humanized format, the number area and function column type. The menu function classification is clear and detailed, and the lighting brightness, menu selection and objective selection all have memory function.

5 .The 10X and 40X objective lenses in high-end models have both measurement and observation functions

6.The hardness conversion table is classified and refined, which is a perfect conversion table in the industry at present.

7.The light source system adopts self-developed new LED lighting, with long service life and low calorific value.

Technical Specifications：

Model	HVS-1000B
Test force	10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Minimum test unit	0.025µm  Electronic automatic measuring eyepiece
Conversion scale	HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Hardness test range	5~3000HV
Test force application method	Automatic (loading, holding, unloading)
Test microscope magnification	100X（Observed）400X(test)
Test force holding time	1~60s
X-Y Test Table	Size:100*100mm  Maximum movement:25*25mm
Data output	LCD display readout, built-in printer and RS-232 interface
Maximum height of specimen	90mm
Distance from center of indenter to outer wall	95mm
power supply	AC220V+5%,50-60Hz
Size	405*290*480mm
Weight	40Kg

 Appendix

Name	Qty	Name	Qty
Weight shaft	1	Weight	6
Cross test table	1	Sheet holding table	1
Flat clamping table	1	Filament clamping table	1
Screwdriver	2	Adjusting screw	4
Small spirit level	1	10X test eyepiece	1
Micro Vickers hardness block (high block, low block)	One of each	Spare fuse (2A)	2
power cable	1	Product certification	1
Instruction Manual	1

 Optional (additional charge) our company’s various hardness tester measurement and analysis software：

Micro/Vickers hardness manual measurement system

(Note: The automatic measurement version can be selected at an additional cost)

Function：

1.Hardness tester control: The system provides serial communication to control the operation of the hardness tester, such as turning the objective lens, loading, setting the holding time, adjusting the brightness of the light, and adjusting the feedback of the test force;

2.Automatic measurement：The system automatically measures the indentation, and automatically draws the hardening curve, updates the statistical results, etc.；

3.Manual measurement：The system provides manual measurement, including four-point measurement and diagonal measurement；

4.Hardness value conversion, correction, effective verification: The system can simultaneously convert the measured micro Vickers hardness value to other hardness scales such as HB, HR, etc.; it can correct the measured value of the spherical cylindrical sample; it can effectively verify the measured value of the sample；

5.Statistics：Automatically calculate the average value, variance, Cp, Cpk and other statistical values ​​of measured hardness, and function of automatically save can be selected；

6.Data storage：Single measurement data and images can be saved in a file for later recall, and can be automatically saved；

7.testing report: Automatically generate WORD or EXCEL document reports; users can customize the report format; the standard format includes every single hardness measurement value, statistical value, indentation image, and hardening curve, etc.；

8.Knoop hardness: Can be set to Knoop hardness measurement；

9.Fracture toughness: Can be set to measure indentation fracture toughness；

10.other functions： Includes all the functions of the iVision-PM microscopic image processing and measurement system, including image capture, calibration, image processing, geometric measurement, document annotation, album management, and fixed-magnification printing, etc.；

System Features

1.Manual modification：After automatic or manual measurement, you can easily use the mouse to manually drag and modify, and the measured values and statistical results will be automatically updated.

Complete software system

1．Multifunctional hardness tester measurement software： 1set（Standard configuration is manual version）

2、Image sensor camera：Sony chip color1/3”HD CCD 850 lines  (Standard)

HD 3 million built-in industrial camera   (Optional)

3、Data acquisition box  ：（High-resolution image real-time acquisition box secondary development software package）

4．Microcomputer and printer：one high-definition 21.5-inch industrial all-in-one computer and one HP color inkjet printer (optional)
