Description
Product introduction

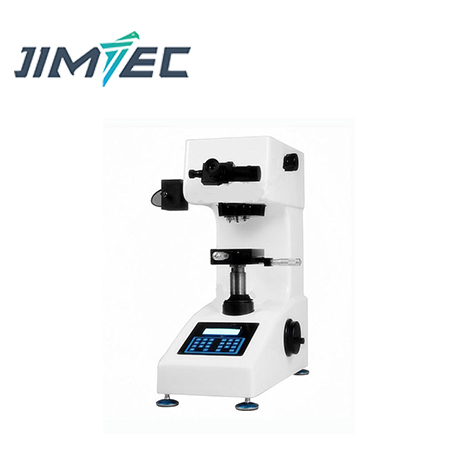

This product adopts unique and precise design in mechanical, optical and light source to make indentation imaging clearer and measurement more accurate. The new LCD display screen is adopted. The operation interface adopts menu structure. The hardness scale HV or HK can be selected on the operation panel. The hardness value tested can be calculated and displayed automatically. Various hardness values can be converted to each other. The machine is equipped with 10 times digital display measuring microscope and 40 times objective lens, which can participate in the measurement, so that the measurement range is larger and the application range is wider. On the screen, the test method, test force, indentation length, hardness value, test force holding time, measurement times, date, time, hardness conversion value and other functions can be displayed. It has the functions of scale conversion, storage, printing and RS232 interface. The automatic conversion and positioning of the indenter and the objective lens are accurate and more efficient. It also has a threaded interface for connecting the digital camera and the CCD camera, which is convenient for selecting the computer and hardness analysis and measurement software.
–The machine has the functions of data storage, query and average value calculation.
-The machine adopts three-point positioning, which is more accurate and repeatable.
-The supporting shrapnel of the machine is made of imported special customized material, which has high toughness, high fatigue resistance and is not easy to deform 4. The operation interface of the machine adopts the humanized format, the number area and function column type. The menu function classification is clear and detailed, and the lighting brightness, menu selection and objective selection all have memory function.
-The hardness conversion table is classified and refined, which is a perfect conversion table in the industry at present.
-The light source system adopts self-developed new LED lighting, with long service life and low calorific value.
Technical Specifications
| Product model | HVS-1000BZ |
| Test Force | 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
| Min Measuring Unit | 0.025μm Electronic automatic measuring eyepiece |
| Conversion Scales | HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
| Hardness test range | 5~3000HV |
| Loading Method | Automatically (loading, dwell, unloading) |
| Magnification of Microscope | 100X(For Observation )400X(For Measurement) |
| Test force holding time | 1~60s |
| X-Y Testing Table | Dimension:100*100 mm
Max. Travel Range: 25*25mm |
| Data Output | LCD display readout, built-in printer and RS-232 interface |
| Max Height of Specimen | 90mm |
| Distance from the center of the ram to the outer wall | 95mm |
| Power Supply | AC220V±5%，50~60Hz |
| Overall Dimension | 405*290*480mm L*W *H |
| Net Weight | 40kg |
Accessories
| Name | Qty | Name | Qty |
| Weight axis | 1pc | Weights | 6pcs |
| Cross test table | 1pc | Wafer holder | 1pc |
| Flat clamping table | 1pc | Filament holder | 1pc |
| Screw driver | 2pcs | Adjusting screw | 4pcs |
| Small level | 1pc | 10x test eyepiece | 1pc |
| Micro Vickers hardness block (high value, low value) | One for each | Spare fuse (2A) | 2pcs |
| power cord | 1pc | Product certificate | 1pc |
| Product instructions | 1pc |
