Description
Product introduction

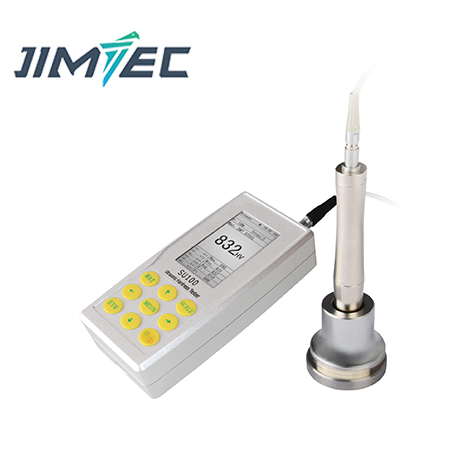

SU-100 manual ultrasonic hardness tester applies module design, which can work with manual probes HP-1K, HP-2K, HP-5K, HP-10K, can be used to test hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
SU-100can test hardness of ferrous metal, non ferrous metal and alloys, it is an ideal instrument, can test hardness of HRA, HRB, HRC, HV, HBW, HS on site, assembly line and lab.
SU-100 can also be upgraded with motorized probes MP-300, MP-500, MP-800, MP-1000, then the function is same with SU-100.
| Load | Model | Features | Application |
| 98N | Standard length (manual) | Relatively large indentation; requires minimal surface preparation | Small forgings, cast material, weld inspection, HAZ |
| 49 N | Standard length (manual)
Extended length (manual) Short probe (manual) |
For general use
30 mm extended length Reduced length (90 mm); electronics in separate housing |
Induction hardened or carburized machine parts, for example, camshafts, turbine weld inspection, HAZ
Measurement in grooves, on gear tooth flanks and roots Turbine blades, inside wall of pipes with Ø >90 mm |
| 9.8 N | Standard length (manual)
Extended length (manual) Short probe (manual) |
Load is easy to apply and provides control to test onsharp radii
30 mm extended length Reduced length (90 mm); electronics in separate housing |
Ion-nitrided stamping dies and molds, forms, presses,
thin walled parts Bearings, tooth flanks Turbine blades, inside wall of pipes with Ø >90 mm |
| 8 N | Motor probe style | Load is applied by servomotor | Finished precision parts, gears, bearing raceways |
| 3 N | Motor probe style | Load is applied by servomotor; rather small indentations | Thin layers, for example, copper or chromium on steel
cylinders; Copper rotogravure cylinders; Coatings, case hardened parts |
| 1 N | Motor probe style | Load is applied by servomotor; rather small indentations | Thin layers and coatings |
Highlighting Characteristics
Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB
Microscopic Indentation—— Only high-power microscope can observe the indentation.
Quick Measurement——Result in 2 seconds.
Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.
Friendly Operation——Operate well after short training.
Promised Warranty——2-Year warranty for main unit (Excludes Probe).
Mass Storage——Save 1000 groups measurement data.
Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.
Specifications
| Product Name | Ultrasonic Hardness Tester | ||||
| Model | SU-100 | ||||
| Code# | 882-141H | ||||
| Optional Rrobe | Manual Probe：10N、20N、49N、98N ;Motorized Probe：3N、5N、8N、10N | ||||
| Measuring Range (ASTM) | HBS:100-500; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255-2180N/mm | ||||
| Measuring
Accuracy |
|||||
| Scales | ﹤250HV | 250~500HV | 500~800Hv | ﹥800HV | |
| HV0.1 | 6 | 7 | 8 | 9 | |
| HV0.3 | 6 | 7 | 8 | 9 | |
| HV0.8 | 5 | 5 | 6 | 7 | |
| HV1 | 5 | 5 | 6 | 7 | |
| HV5 | 5 | 5 | 6 | 5 | |
| HV10 | 5 | 5 | 5 | 5 | |
| Hardness Scales | Vickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB) | ||||
| LCD | Color Screen | ||||
| Data Display | Loading force,Testing-times, Testing result, Average,
Maximum、Minimum、Deviation and Conversion scale. |
||||
| Language | Chinese, English, German, Portugese, Turkish | ||||
| Data Output | RS232 Hyper Terminal/Bluetooth Printer | ||||
| Bluetooth | |||||
| Data Storage | To save 1000-groups of measuring data and 20-groups of calibration data | ||||
| Word Input | Letters and numerals | ||||
| Working Environment | Temperature: -10°C to 50°C ; Humidity :30%-80% R.H. | ||||
| Battery Voltage | Rechargeable lithium battery ; Voltage :4.2V, 4800mAh | ||||
| Recharger Voltage | AC220V/50Hz, 110V/60Hz | ||||
| Main unit Dimension and Weight | Main unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg | ||||
| Packing Dimension and Weight | Packing Dimension :320 x 430 x 155mm (L x W x H) ; Packing Weight （Standard Delivery）:4.3Kg | ||||
Standard Delivery
| Product Name | Code # | Product Name | Code # | Product Name | Code # |
| Instrument Main Body | 882-141H | 20N Manual Probe | 882-321 | Anti Vibration Case | 882-901 |
| Standard Rockwell Block | 882-641 | Probe Cable | 882-801 | Screw | 882-951 |
| USB Recharger | 882-851 | COM Cable | 882-810 | Operation Manual | SU-100 |
| Qualification Certificate | SU-100 | Packing List | SU-100 | Warranty Card | SU-100 |
