Description
Features
- DCompact plastic case,suitable for use under poor working conditions.Test at any angle, even upside down.
- Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
- Large screen(segment LCD), showing all functions and parameters. With EL background light.
- Large capacity memory could store 100 groups information.
- Datapro Software to connect with PC via RS232 port.Micro printer support
- Software calibration function.
Technical Specifications
- Measuring range：
(170-960)HLD,(17.9-69.5)HRC,(19-651)HB,(80-1042)HV,(30.6-102.6)HS,(59.1-88)HRA,(13.5-101.7)HRB,also can customized
- Measuring direction：360°(↓↖↗↘↙→←↑)
- Accuracy:±6HLD
- Hardness Scale:HL、HB、HRB、HRC、HRA、HV、HS
- Display：segment LCD
- Data memory: 100 groups(relative to impact times 32~1)
- Working voltage:3V(2 AA size alkaline battery)
- Continuous working period:about 100 hours(With backlight off)
- Communication interface:RS232
Main Application
- Die cavity of molds
- Bearings and other parts
- Failure analysis of pressure vessel, steam generator and other equipment
- Heavy work piece
- The installed machinery and permanently assembled parts.
- Testing surface of a small hollow space
- Material identification in the warehouse of metallic materials
- Rapid testing in large range and multi-measuring areas for large-scale work piece

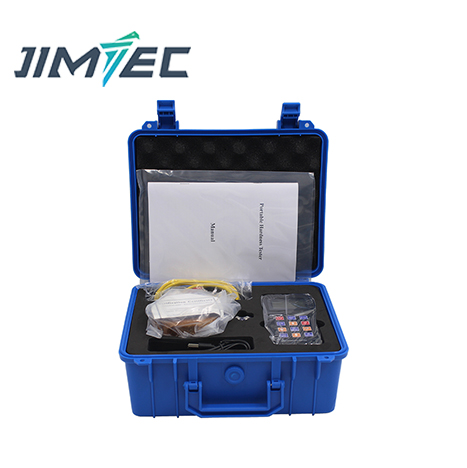

Standard Configuration
| No. | Item | Quantity | Remarks | |
| Confi. | 1 | Main unit | 1 | |
| 2 | D type impact device | 1 | With cable | |
| 3 | Standard test block | 1 | ||
| 4 | Cleaning brush (I) | 1 | ||
| 5 | Small support ring | 1 | ||
| 6 | Alkaline battery | 2 | will not put in the package | |
| 7 | Manual | 1 | ||
| 8 | Package case | 1 |
