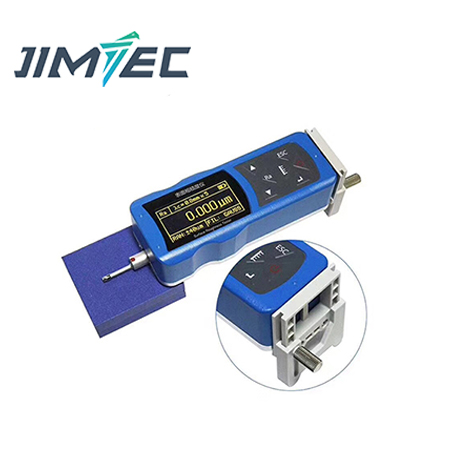

Description
Main feature
-Electromechanical integration design, small size, light weight, easy to operation
-Using DSP chip to control and data processing, high speed, low power consumption;
-128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
-Intuitive and rich display information, can display all the parameters and graphics;
-Compatible with ISO, DIN, ANSI, JIS national standards;
-Residual quantity icon, prompting the user to charge;
-Continuous working time: more than 20 hours.
-Real-time clock settings and display, convenient data recording and storage.
-With automatic dormancy, automatic shutdown and power saving function
-Reliable control motor to go dead circuit and software design
-Measurement information display, menu prompt information, false information and switch machine and other tips that information;
-Can be connected to a computer and printer;
-Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
-Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
-High price performance
-Bluetooth function
-Can acquire, manage data by APP.
Technical Parameters
| Name | Content | ||
| Measurement Range | The Z axis (vertical) | 160μm | |
| The X axis (horizontal) | 17.5mm | ||
| Resolution ratio | The Z axis (vertical) | 0.01μm/±20μm | |
| 0.02μm/±40μm | |||
| 0.04μm/±80μm | |||
| Measurement item | Parameter | Ra Rz==Ry(JIS) Rq Rt==Rmax
Rp Rv R3z R3y Rz(JIS) Rs Rsk Rku Rsm Rmr |
|
| Standard | ISO,ANSI,DIN,JIS | ||
| Graphic | Material ratio curve | ||
| Filter | RC,PC-RC,Gauss,D-P | ||
| The sampling length(lr) | 0.25,0.8,2.5mm | ||
| Assessment length（ln） | Ln= lr×n n=1~5 | ||
| Sensor | Principle | The displacement differential inductance | |
| Stylus | Natural Diamond, 90B cone angle, 5μm tip radius | ||
| Force | <4mN | ||
| Skid | Ruby,Longitudinal radius 40mm | ||
| Traversing speed | lr=0.25, Vt=0.135mm/s | ||
| lr=0.8, Vt=0. 5mm/s | |||
| lr=2. 5, Vt=1mm/s | |||
| Return, Vt=1mm/s | |||
| Accuracy | No more than±10% | ||
| Repeatability | No more than 6% | ||
| Power supply | Built-in3.7VLithium ion battery,Charger :DC5V,800mA/3hour | ||
| Working Time | More than 20 hours | ||
| Outline dimension L*W*H | 141*55*40mm | ||
| Weight | About 400g | ||
| Working Environment | Temperature:- 20℃ ~ 40℃
Humidity:< 90% RH |
||
| Store and Transportation | Temperature:- 40℃ ~60℃
Humidity:< 90% RH |
||
Standard Configuration

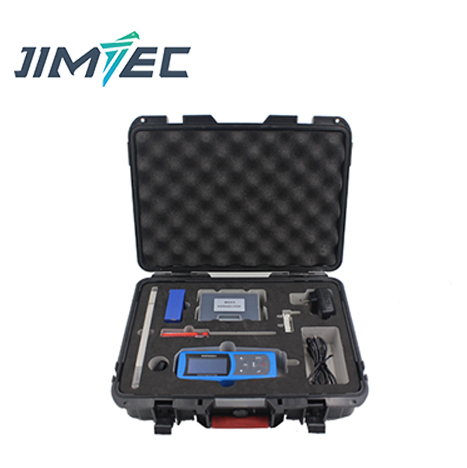

| Number | Name | Quantity | Remarks |
| 1 | Main Unit | 1 | |
| 2 | Sensor | 1 | Precision parts |
| 3 | Adjustable Support | 1 | |
| 4 | Calibration block | 1 | |
| 5 | Block bracket | 1 | |
| 6 | Charger | 1 | |
| 7 | USB charging cable | 1 | |
| 8 | Operating manual | 1 | |
| 9 | Certificate | 1 | |
| 10 | Guarantee card | 1 | |
| 11 | Instrument container | 1 | |
| 12 | Software | 1 |
Optional configuration
| JITAI55 | -Extension rod.Used to extend length of sensor when testing deep hole (55mm) |
| JITAI90 | -Right angle measuring mechanism. |
| JITAI100 | -standard sensor, plane & shaft & inner surface of hole>6mm, depth <22mm |
| JITAI120 | -small hole sensor, cylindrical& plane &inner surface of hole>2 mm, depth <9mm |
|
JITAI110 |
-sensor for curved surface & plane, cylindrical, curvature radius>3 mm |

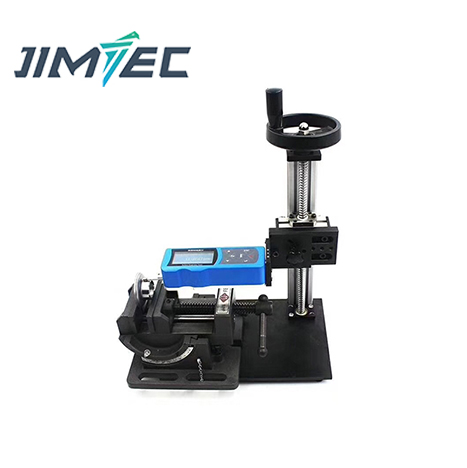

| JITAI131 | –sensor for deep groove, cylindrical & plane & groove width>3 mm, depth<10mm |
| JITAI520 | -Metal(Al)working platform, elevating, convenient and stable for test process. |
| JITAI620 | –Marble substrate working platform, elevating, V groove, high accuracy to test tiny work piece. |
| Roughness comparison block |
High quality comparison block of surface roughness Strict anti-rust treatment process 27 comparison block/set |
| Mini Pinter |
External printer |
