Description
Introduction
During the metallographic sample preparation, the cutting of materials is the first process. In order to cut ideal samples in a safe state, the cutting machine uses a high-speed rotating thin-sheet reinforced grinding wheel to cut samples.

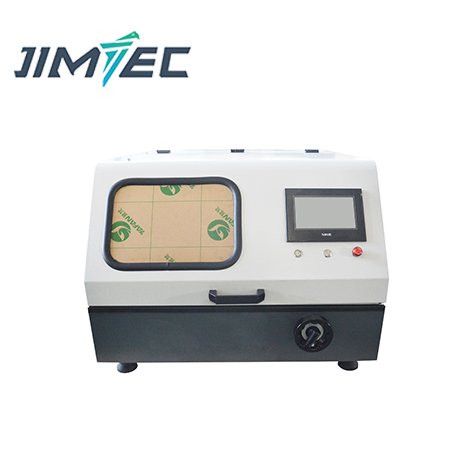

JMC-100MT cutting machine can cut round workpieces with a diameter of less than 100mm, as well as rectangular specimens with a height of 100mm and a length of 160mm. The machine cools the sample through a self-circulating cooling system to prevent the sample from overheating and burning the structure during the cutting process. The machine can also set the cutting speed for cutting different samples, thereby improving the quality of the cut samples. This machine has two modes of cutting, which are manual cutting and automatic cutting. Double safety limit, to ensure that the machine is non-damaged by excessive movement during automatic cutting. At the same time, it also has a convenient operation, easy maintenance, and large-volume cutting chamber, which is more convenient for cutters to use Etc.
Technical Specifications
| Technical specifications | |
| Cutting chamber housing | Steel plate |
| Maximum cutting diameter | 100mm (pipe) |
| Effective feed length | 120mm |
| Infeed depth tracking | LCD digital display |
| Cutting table size | 220*230mm |
| Cutting sheet specifications | 300*2.5*32mm |
| Clamping table specifications | The fixture table is divided into left and right, and the central cutting edge |
| Cutting method | Manual / Auto |
| Way of giving | Arbitrary adjustment (hand, self-dual use) |
| Cutting speed | 0.1-2.5mm/s, automatic cutting method can be selected: intermittent cutting (metal workpiece) and continuous cutting (non-metal workpiece) |
| Feed distance | Arbitrarily set (0-120mm) |
| Reset method | Automatic reset |
| cooling system | Automatic (water-cooled 2 channels) |
| Water tank capacity | 50L |
| Spindle speed | 2800r/min |
| Motor Power | High power 3KW |
| Machine form | Desktop |
| Dimensions | 730*700*650mm |
| power supply | 380V |
| weight | 180KG |
| Standard configuration | |
| Host | 1 |
| cooling system | 1 |
| Random tool | 1 |
| Fixture | Two |
| Metallographic special anti-rust coolant | A bucket |
| Metallographic special cutting disc | 1 |
| Technical documents | manual, certificate, warranty card |
