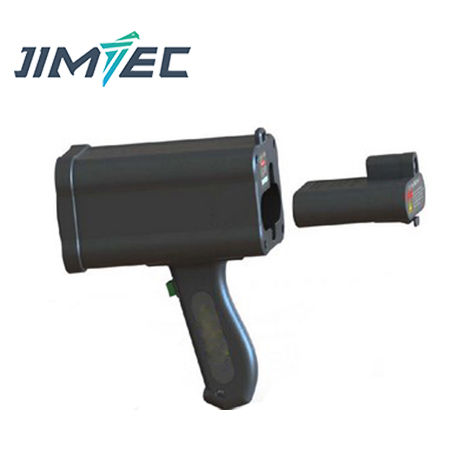

This has been designed for use in NDT testing application to aid in the visual inspection and identification of cracks,inclusions and other forms of surface defects in components under-going florescent liquid penetrant and magnetic particle inspection. It is also extremely effective in identifying proper rinsing during the NDT inspection rinse process.
| Product’s Name | Handheld UV LED lamps |
| Model type | S3120 |
| Intensity adjustable | Intensity range:0-4000μw/cm2
Intensity range: ＞8000μw/cm2 Intensity range: ＞10000μw/cm2 |
| UV(Light)-FLUX | 6000μw/cm2 |
| Visibale Light | ≤20LUX |
| Coverage area | Diameter is about 300mm |
| FLUX Error | 0-40℃ ±10% |
| Power | AC100-240V 50/60Hz |
| Output | UV LED-12VA |
| Wavelength | 365nm±3nm(UVA) |
| Size | 137*72*175mm |
| Weight | 498g |
| Battery Capacity | 2200mA/H 12.6V |
| Charging Time | 2-3H |
