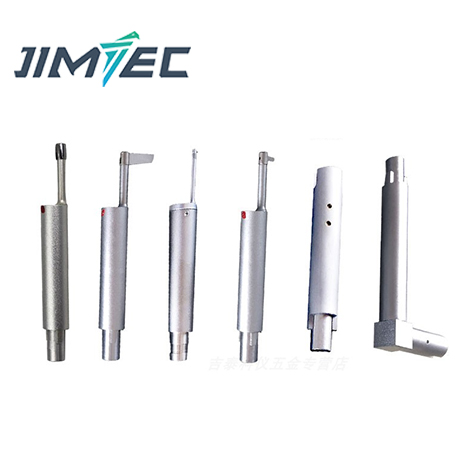

Surface Roughness Tester Sensor

Description

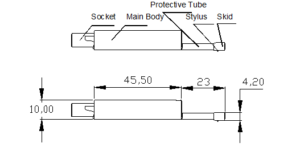

1.Standard Sensor

Most of the standard sensor sensor, it can measure most of the plane, inclined plane, cone surface, inner hole, groove and other surface roughness, can be hand-held measurement, in addition to the standard sensor, other special sensors are needed to measure the measuring platform.

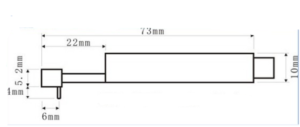

2.Curved Surface Sensor

Curved surface sensor is mainly used for measuring radius is larger than the smooth cylindrical 3mm surface roughness, for the larger radius smooth spherical surface and other surface also can obtain good approximation, the radius of curvature, the surface is smooth, the better the effect of measurement

3.Pinhole Sensor

Using Pinhole pickup, the inner surfaces of holes with radius more than 2mm can be measured. Refer to the following Figure for detailed dimension.

4.Deep Groove Sensor

With deep groove sensor, it is possible to measure groove with width wider than 3mm and depth deeper than 10mm, or the surface roughness of step with height less than 10mm, Also can used to measure the planar, cylindrical used with platform. please see figure for detailed dimension.

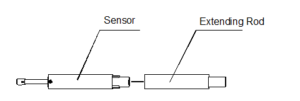

5.Extending Rod

Extending rod increases the depth for pickup to enter the part. Length of extending rod is 50mm.
